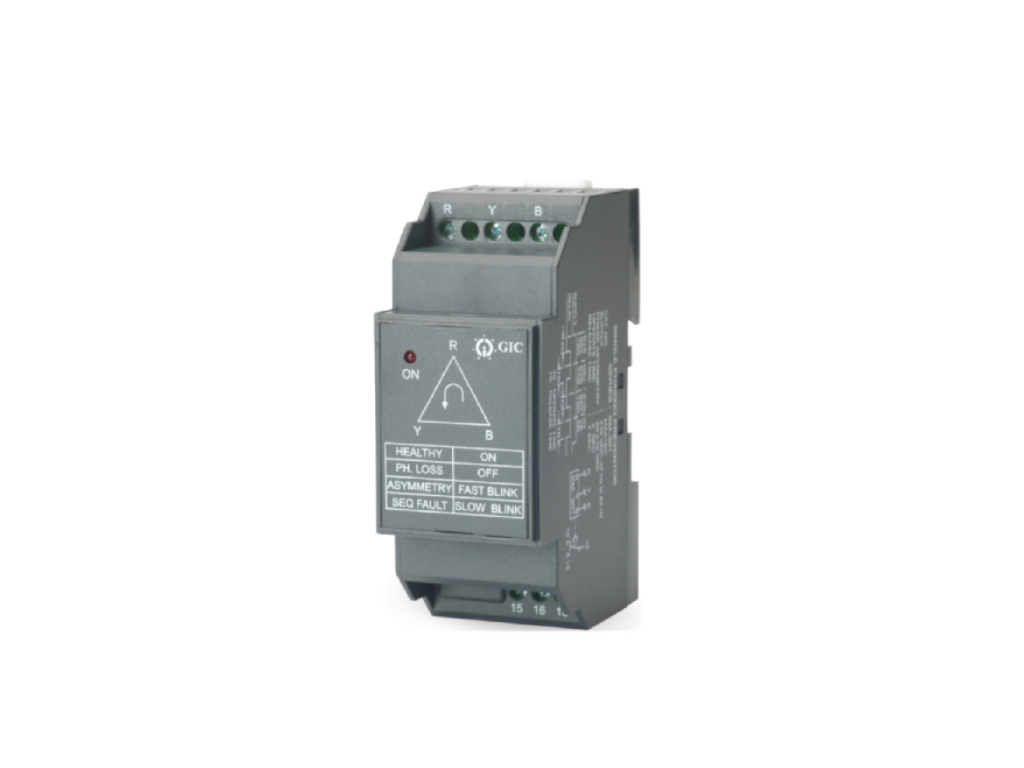

Surveillance de la tension – SM301 MC21B5
- Protège contre la perte de phase, l’inversion de phase et l’asymétrie de phase
- Aucune alimentation auxiliaire nécessaire
- Principe de détection de tension
- Configurations 1 OF et 2 OF
- Conçu pour répondre aux applications des segments industriels et agricoles
- Informations complémentaires
Informations complémentaires
| Product Type | Tension, Voltage Monitoring Relay |
|---|---|
| Power Consumption (Max.) | 15 VA |
| Supply Voltage | 415 VAC |
| Trip Settings | Phase Loss – Yes Phase Sequence – Yes Phase Asymmetry – 65 V ( ±10V) Hysteresis – 10 to 18 V |
| Frequency | 50/60 Hz |
| Time Delay | ON Delay – < 550 ms Trip Time (OFF Delay) – < 550 ms |
| LED Indicator | Red Relay ON (Healthy) |
| Output | Relay Output – 2 C/O Contact Rating – 5A @ 250 VAC / 28 VDC (Resistive) Electrical Life – 1X105 Mechanical Life – 5X106 |
| Humidity (Non Condensing) | 95% (Rh) |
| Dimension (W x H x D) (in mm) | 36 X 90 X 60 |
| Weight | 120 g |
| Warranty | As Per Manufacture Terms & Conditions |
